Penjualan Panas Printer Layar Tabletop CE dengan T-Slot Worktable

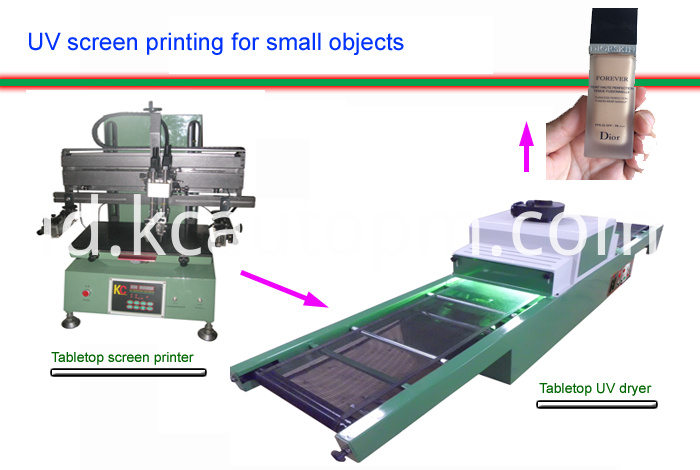

ST-3050PT is a table top pneumatic screen printer with T-grove worktable.Pneumatic screen printing machine Use: glass, paper, wood, plastic, pieces and other small flat material high-precision flat screen printing.

Flat screen printing machine Guide

• T-Groove table to facilitate the production of injection  , suitable for Plastics parts etc.
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• Ruber squeegee and screen rame controller by High precision liner guide rial.
• 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case

Parameters

• Max printing thickness: 150 mm;
• Air consumption: 60Litre/Min;
• Dimension of working table: 300×500mm;
• Max printing areas: 290×490mm;
• Max printing speed: 1000Pcs/H;
• Max frame dimension: 500×750mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:125mm;
• Stroke of Squeegee: 500mm;
• Table Precision: 0.05mm;
• Rang adjustment of table: 10mm

Advantage

• T-Groove table to facilitate the production of injection , suitable for All rigid and Plain products.Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
