agen penjualan panas menemukan mesin pencetakan layar desktop presisi

The mini flat screen printing machine with vacuum table is adopted vacuum generator to bring strong adsorptive power without noise. It replace manual screen printing, and solve the problems of un-stable printing quanlity, and slow printing speed by manual screen printing. The machine is small with quick speed, stable function, high precice, it can be made up of screen printing production line in small workshop. It`s special suitable for printing logo on the surface of PVC, paper, nameplate and kinds of film.

Precision Desktop screen printing machine//Feature

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.

Precision Desktop screen printing machine// Application

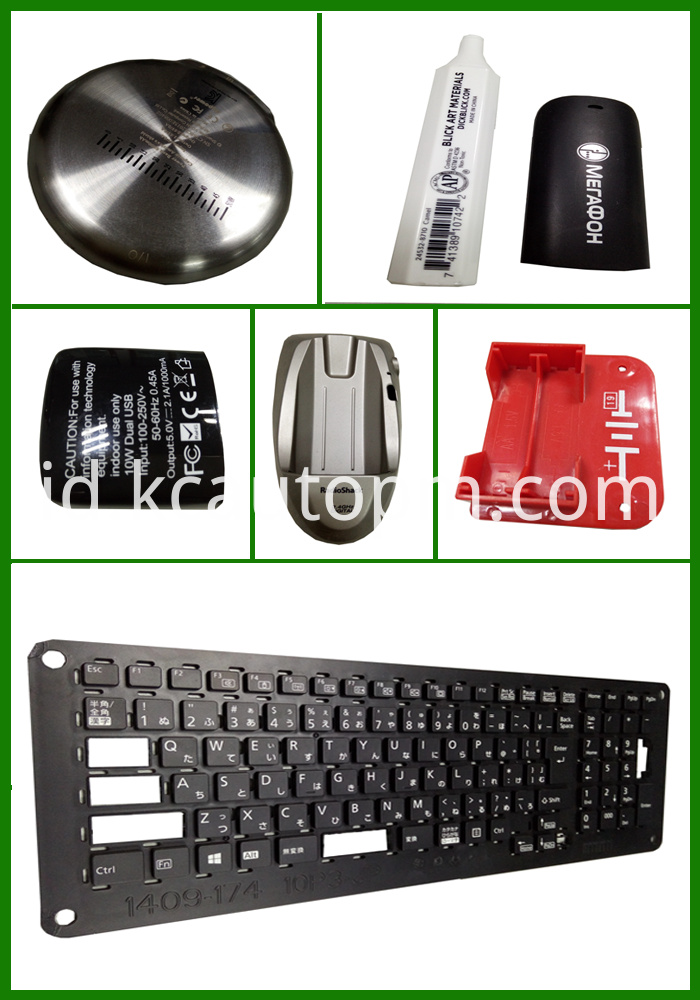

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case

Precision Desktop screen printing machine// Parameters

• Max printing thickness: 150 mm;
• Air consumption: 60Litre/Min;
• Dimension of working table: 200×300mm;
• Max printing areas: 190×290mm;
• Max printing speed: 1000Pcs/H;
• Max frame dimension: 320×470mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:125mm;
• Stroke of Squeegee: 300mm;
• Table Precision: 0.05mm;
• Rang adjustment of table: 10mm

Precision Desktop screen printing machine// Advantage

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
