Hot menjual printer layar meja datar berbiaya rendah dengan meja T-slot

ST-2030PT Flat screen printing machine with vacuum table //Guide

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.

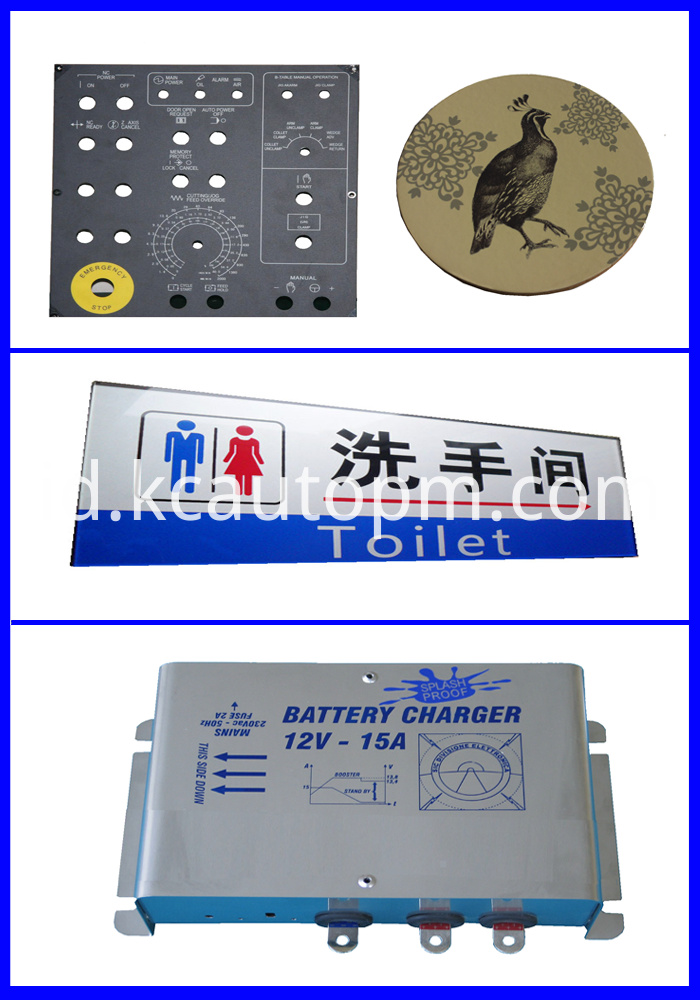

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case

• Max printing thickness: 150 mm;
• Air consumption: 60Litre/Min;
• Dimension of working table: 200×300mm;
• Max printing areas: 190×290mm;
• Max printing speed: 1000Pcs/H;
• Max frame dimension: 320×470mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:125mm;
• Stroke of Squeegee: 300mm;
• Table Precision: 0.05mm;
• Rang adjustment of table: 10mm

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
