Rumah > Produk > Mesin pencetakan layar > Printer Layar Tabletop > Mesin pencetakan layar silinder meja gaya presisi
Kategori Produk
Layanan online

Mesin pencetakan layar silinder meja gaya presisi

Berbagi ke:
Harga satuan: USD 1550 / Bag/Bags
Min.Order Harga satuan
1 Bag/Bags USD 1550 / Bag/Bags
Jenis pembayaran: L/C,T/T
Terms of Trade: FOB,CIF
Min. Memesan: 1
Harga satuan: USD
Info dasar
Model No:ST-60SP
Jenis pelat cetak: Printer Layar
Industri yang berlaku: Toko Bahan Bangunan, Bengkel Mesin, Pabrik Makanan & Minuman, Restoran, Eceran, Pekerjaan konstruksi
Layanan di luar garansi: Dukungan teknis video, Dukungan online, Suku cadang, Layanan pemeliharaan dan perbaikan lapangan
Di mana menyediakan layanan lokal (di negara mana terdapat outlet layanan di luar negeri): Thailand, Australia, Argentina, UEA, Srilanka, Afrika Selatan
Lokasi showroom (di negara mana terdapat ruang sampel di luar negeri): Spanyol, Kenya, Chile, Aljazair, Bangladesh, Ukraina
status: Baru
Tempat asal: Cina
menggunakan: Printer Tabung
derajat otomatisasi: Setengah otomatis
Mencetak nomor warna dan nomor permukaan: Warna tunggal
masa garansi: 1 tahun
Nilai jual inti: Mudah Dioperasikan, Umur Panjang, Tingkat Kebisingan Rendah
Jenis pemasaran: Produk Panas 2019, Produk Biasa
Laporan uji mekanis: Disediakan
Inspeksi pabrik video: Disediakan
Masa garansi komponen inti: 1 tahun
Komponen inti: Motor, Pompa
Max Print Diameter: 100mm
Additional Info
Kemasan: Kotak kayu
Produktivitas: 50 sets / month
Merek: KC
Transportasi: Ocean
Tempat asal: Dongguan
Dukungan tentang: 50 sets/month
Sertifikat: CE Certificate
Pelabuhan: Shenzhen,Guangzhou,Hongkong
Deskripsi Produk


Mesin pencetakan layar ST-60SP // Penggunaan dan Karakter

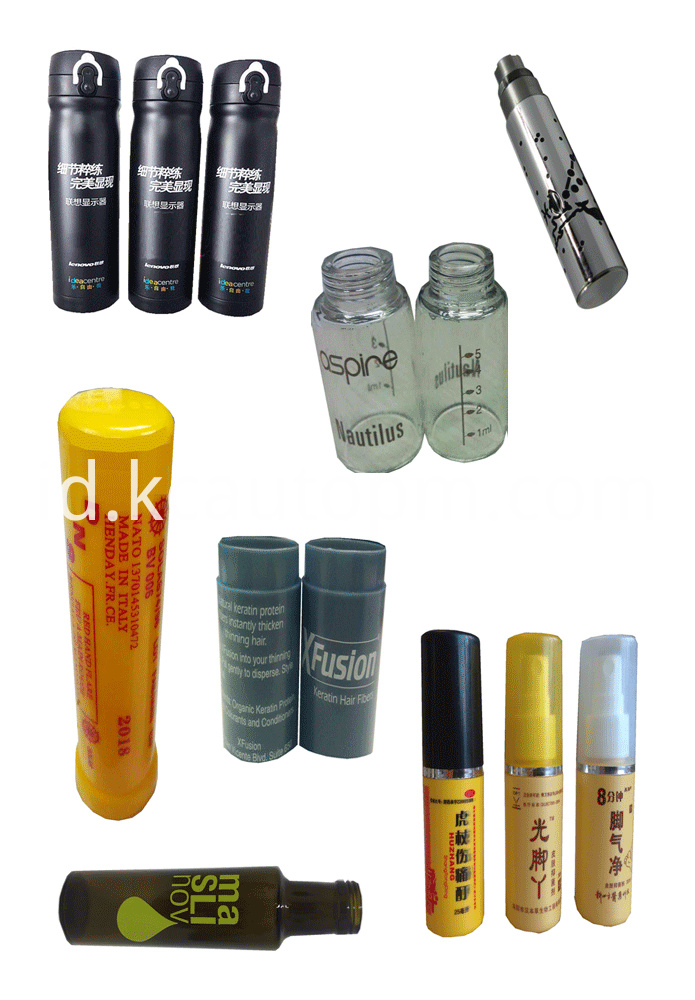

Sampel

243

Struktur mesin

018

Detail

299

Deskripsi mesin

  • 80mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
  • Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
  • With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
  • Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
  • Upper and lower part of Screen plate, take place after the table automatically lifting the work piece;
  • You can use the foot switch for automatic operation, the safety factor greatly increased;
  • Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

Application

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

ST-60SP Screen printing Machine //Parameters

  • The max printing thickness: 200 MM;
  • Air consumption: 75 Lit/Min;
  • Outline size: 1080×850×1280MM;
  • The max printing area : 200×250MM;
  • Dimension of working table: 250mm×300mm;
  • Max printing speed: 1300Pc/H;
  • Max frame dimension: 410×350mm;
  • Stroke of Squeegee: 250mm;
  • Stroke of Table cylinder: 60mm;
  • Max Diameter of Products: 75mm;
  • Max length of Products: 300m
  • Works supply: 110V-220V Power supply;
  • 5-7 Bar compress air;
  • Shipment parameters
  • Outer dimension: 860*660*960mm;
  • Net weight: 95Kg.
  • Package dimension: 980*840*1140mm;
  • Gross weight: 135Kg;
  • CBM: 096768
  • H.S.CODE: 8443198000
  • Certificate: CE

ST-60SP Cylinder screen printing Machine//Advantage

  • Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
  • Contact with the substrate , up and down of screen plate, to facilitate the placement of the substrates and removed;
  • High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
  • High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
  • Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
  • Microcomputer control program operations, set up a variety of modes;
  • Four counts digital LED count, high degree of automation;
  • Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
  • Around the screen frame, up and down the emblem of the tune, overlay accuracy,.
Katalog

297

Kategori Produk : Mesin pencetakan layar > Printer Layar Tabletop
